Quadrant

Qing Dynasty, 1673
Ancient Observatory, Beijing

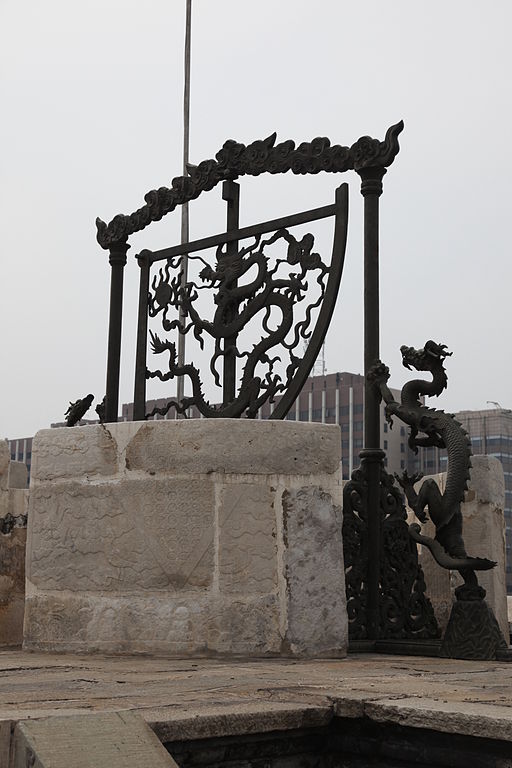

This instrument is, disregarding its marvellous lacework of decoration, just the "altitude" half of the theodolite (see previous two pages). By lining it up on a celestial body, the altitude coordinate (angle above the horizon) could be read from a pointer scale. A view of its mechanism is shown on the next page.
